Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H

Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H

  • Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H
  • Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H
  • Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H
Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H
Product Details:
Place of Origin: China
Brand Name: Nanya
Certification: CE/TUV/SGS/ISO9001
Model Number: TA-05
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Standard Packing
Delivery Time: 45~75 days
Payment Terms: T/T or western Union or L/C
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Pulp Molding Machine Capacity: 7000 Pcs/h
Automation: Fully-automatic Forming Type: Vacuum Suction / Thermoform
Standard: CE/TUV/SGS/ISO9001 Processing Material: Bagasse Pulp Or Bamboo Pulp Or Straw Pulp Or Wood Pulp
Voltage: 220 V - 450 V Drying Type: Drying In Mould
High Light:

Paper Plate Making Machine

,

Paper Plate Manufacturing Machine

Fully Automatic Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H​



Specifications:



Model Type

TA-05

Capacity

7000 pcs/h

Workshop Requirement

600 m2

Electricity Consumption

450 kw

Electricity Installed

220 kw

Raw Material  bagasse pulp/bamboo pulp/straw pulp/wood pulp

Material Consumption

120 ~ 140 kg/h

Water Consumption

500 ~ 800 kg/h

Worker Requirement

6 persons

Container Requirement for Shipment

4 x 40’ HQ

Forming Type

Vacuum suction, thermoforming

Drying Method

Drying in mould

Notes:

  1. The Capacity calculated base on 8” round dish(weight ~16g). The capacity may be different for other products.
  2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.



Production Information and Our Warranty:

  • Status: Brand new
  • Product Type: thermoforming Machine
  • Processing Type: Pulp Molding Machine
  • Place of origin: Guangdong China
  • Brand: NANYA
  • Model Type: TA-05
  • Voltage: 220V - 440V
  • Approval: CE, TUV,SGS, ISO9001
  • Warranty: 12 Months
  • After-Sale Service: Engineers available to service machinery overseas



Descriptions:

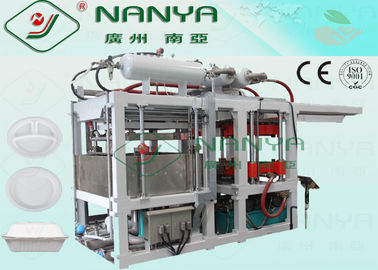

  • This is a fully automatic pulp molding production line
  • It’s mainly used for high quality pulp molded products, such as dishware, artware, disposable medical care products, high quality industrial package...
  • This type of production line is constituted by a hydrapulper system, a fully automatic thermoforming machine(forming/drying/pressing integrative machine), and corollary equipments.
  • Products are make from paper pulp(usually it is virgin pulp). It’s high-efficiency, energy-saving, durable, wieldy and safe.
  • SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
  • Apply International famous brand of control parts to obtain excellent performance and universality maintainability.



Applications:


Egg tray

20,30,40packed egg tray…  quail egg tray

Egg carton

6, 10,12,15,18,24 packed egg carton…

Agricultural products

Fruit tray, seeding cup

Artware

Mask, Christmas balls, Easter Eggs , boutiques…

Disposable Medical Care Products

Bedpan, sick pad, female urinal…

High quality packages

Mobile phone package, camera package,

Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H 0


Competitive Advantages:

  • Our history and experience: Nanya has been focus on paper pulp molding equipment since the established year of 1994, which is the first professional manufacturer in this field in China.
  • Sizable Company Scale: Nanya covers an area of over 20000 square meters. We have specific workshop for material cutting, wielding, machining, electronic processing, assembling, debugging and production testing.
  • Expert Team: Nanya owns an excellent staff over 200 members united as one full of energy. There are over 50 researching staff and over 19 quality control personnel in our factory, which guarantee the high quality products.
  • Technology Support: Nanya has established long term technical cooperation with renowned universities, Guangdong University of Technology (GDUT) and South China University of Technology (SCUT). Through these years, we together develop and apply the advanced technology at home and abroad.
  • Market & Reputation: Nanya takes up more than 60% of the total sales of domestic market share. The products are also export to more than 50 countries and regions.
  • After-sales Service: Technicians are available to be sent to install machine and train the workers for our customer. Professional colleagues are responsible for the after-sales service to minimize our customers’ operating cost.



Working Theory:

  • The track or worker carries the raw material into the conveyor;
  • The conveyor pours down the raw material into the hydrapulper mixing with certain water;
  • The mixed paper pulp will going into the pulp adjustment pond to be adjusted to a certain consistency;
  • Next the pulp will flow into the second pond called supply pond, in which the pulp keeps a consistency stably;
  • The pulp will be bumped into the forming machine. The fiber in the pulp will cover the wiremesh of the mold with the effect of the vacuum. So the wet products are shaped  on the working platform;
  • Then the wet products will be trandferred to the heating area to get dryed and hot pressing automatically.
  • After that the products need to be edged and disinfected.



Schematic Diagram:

Top Grade Packaging Machinery Paper Plate Food Container Machine 7000Pcs / H 1



Business Terms



NO.

ITEM

DESCRIPTION

1

Payment Terms

30% down payment by T/T,
70% before shipment by T/T or L/C at sight

2

Delivery Terms

FOB Guangzhou, China.
(Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

3

Delivery Time

45-75 days

4

Packages

Packages suitable for ocean transport.
The small parts are packaged by wooden boxes.
The big parts are protected by wooden support.

5

Installation

Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

6

Warranty

12 months after installation

7

After service

  1. The seller will send spare parts for one year use by free.
  2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
  3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
  4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

8

Quotation Validity

90 days after the offering date
