Hot Pressing Paper Pulp Molding Machine for Industrial Packages 5 ~8 tons

    • Hot Pressing Paper Pulp Molding Machine for Industrial Packages 5 ~8 tons
    • Hot Pressing Paper Pulp Molding Machine for Industrial Packages 5 ~8 tons
    • Hot Pressing Paper Pulp Molding Machine for Industrial Packages 5 ~8 tons
  • Hot Pressing Paper Pulp Molding Machine for Industrial Packages 5 ~8 tons

    Product Details:

    Place of Origin: China
    Brand Name: Nanya
    Certification: CE/TUV/SGS/ISO9001
    Model Number: ZC5-B1-QY

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 30~60 days
    Payment Terms: T/T or western Union or L/C
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Pulp Molding Machine Capacity: 5 ~8 Tons
    Standard: CE/TUV/SGS/ISO9001 Applications: Egg Tray, Fruit Tray, Coffee-cup Tray, Medical Tray, Craft...
    Processing Material: Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp After-sales Service Provided: Engineers Available To Service Overseas
    Machine Dimension: 750×1100×1900mm Warranty: 12 Months

    Paper Pulp Molding Hot Pressing Machine for Industrial Packages 5 ~8 tons


    Specifications:



    Model Type

    ZC5-B1-QY

    Product Name

    C-type hot-press machine

    Working Pressure

    5~8tons

    Nominal Voltage

    220V±10%

    Power Consumption

    7kw

    Hot Pressing Temperature

    15℃~180℃ (adjustable)

    Working Cycle

    6~60seconds (Adjustable)

    Maximum working Stroke

    400mm

    Cylinder Diameter

    125mm

    Mould Plate size

    650×450mm

    Machine Dimension

    750×1100×1900mm

    Air Pressure

    0.5 ~0.6MPa




    Descriptions:

    • This is a C-type hot-press machine.
    • Hot-press machine utilizes the high temperature and high press to fix the shape of the dried paper tray products so that the appearance of the products will be smoother and more beautifully.
    • This type of machine has the simple structure and neat appearance. Its electrical control system is quite stable and its aerodynamic performance is satisfied.
    • The new hot-press machine takes cylinder supported by air pressure and hydraulic pressure as its motive force. So this machine has high efficiency, high pressure and saves electricity as well.


    Production Information and Our Warranty:

    • Status: Brand new
    • Product Type: C-type hot-press machine
    • Processing Type: Pulp Molding Machine
    • Place of origin: Guangdong China
    • Brand: NANYA
    • Model Type: ZC5-B1-QY
    • Voltage: 220V-440V
    • Approval: CE, TUV,SGS, ISO9001
    • Warranty: 12 Months
    • After-Sale Service: Engineers available to service machinery overseas


    Competitive Advantages:

    • Energy saving and labor utilization
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association


    Applications:

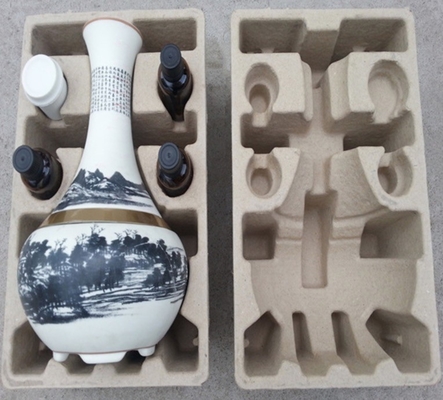

    High Quality Packages & Shockproof Packaging

    Mobile Phone Package, Camera Package, Electrical Equipment, Electronic Products, Electronic Tools, Communication Apparatus, Lamp and Lanterns

    Cup salver

    2, 4 cup salver

    Artware

    Mask, Christmas Balls, Easter Eggs , Boutiques…

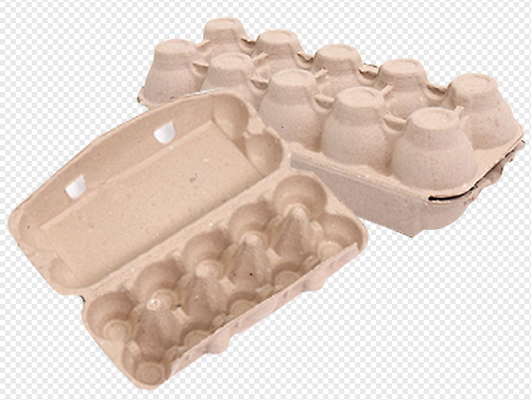

    Agricultural products

    Fruit tray, seeding cup

    Disposable Medical Care Products

    Bedpan, Sick Pad, Female Urinal…

    Hot Pressing Paper Pulp Molding Machine for Industrial Packages 5 ~8 tons

    Hot Pressing Paper Pulp Molding Machine for Industrial Packages 5 ~8 tons





    Competitive Advantages:

    • Energy saving and labor utilization
    • Overseas technical support available
    • Proprietary technology
    • TUV Supplier Assessment Certificate
    • SGS Supplier Assessment Certificate
    • CE Certificate
    • Nanya - Chinese famous trademark
    • Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
    • The standing director of Chinese packaging association


    Business Terms:


    NO.

    ITEM

    DESCRIPTION

    1

    Payment Terms

    30% down payment by T/T,
    70% before shipment by T/T or L/C at sight

    2

    Delivery Terms

    FOB Guangzhou, China.
    (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).

    3

    Delivery Time

    30-60 days

    4

    Packages

    Packages suitable for ocean transport.
    The small parts are packaged by wooden boxes.
    The big parts are protected by wooden support.

    5

    Installation

    Seller should appoint 2 engineers to instruct buyer for installation, test-run and training.
    All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer.
    Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.

    6

    Warranty

    12 months after installation

    7

    After service

    1. The seller will send spare parts for one year use by free.
    2. The seller will provide operating manual, drawing, process diagram for all of the equipments.
    3. The seller will instruct the operation, maintain method for the buyer’s worker after installation.
    4. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;

    8

    Quotation Validity

    90 days after the offering date


    Schematic Diagram:

    Hot Pressing Paper Pulp Molding Machine for Industrial Packages 5 ~8 tons
