Auto Turning Single Side Waste Paper Pulp Tray Forming Machine for Indutrial Packages

Name: Auto Turning Single Side Waste Paper Pulp Tray Forming Machine for Indutrial Packages
Brand: Nanya
SKU: CY201
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (119 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Nanya
Certification:	CE/TUV/SGS/ISO9001
Model Number:	CY201

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Export Standard Packing
Delivery Time:	30~60 days
Payment Terms:	T/T, L/C, Cash or western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Product Name:	Pulp Molding Machine	Automation:	Full-automatic
Forming Type:	Vacuum Suction	Standard:	CE/TUV/SGS/ISO9001
Application:	Egg Tary / Egg Carton / Egg Box / Fruit Tray / Artcraft / Mediacal Products...	Processing Material:	Waste Paper / Wood Pulp / Bagasse Pulp / Bamboo Pulp / Straw Pulp
After-sales Service Provided:	Engineers Available To Service Overseas	Machine Dimension:	2500×1800×3040mm
High Light:	Paper Tray Forming Machine , Tray Forming Machinery

Automatic Turning Single Side Waste Paper Pulp Forming Machine for Indutrial Packages

Specifications:

Model Type	CY201
Product Name	Automatic turnover –single type forming machine
Nominal Voltage	220V±10%
Rated Frequency	50Hz
Absorbing Pulp Time	0~30seconds (Adjustable)
Dehydrating Time	0~30seconds (Adjustable)
Production Cycle	12~60seconds(Adjustable)
Vacuum	-0.07 ~ -0.05MPa
Input Air Pressure	0.5~0.7MPa
Power Consumption	≤1KW
Cylinder Diameter	125mm
Cylinder Route	450 mm
The Height of the product	≤160mm
Mould Plate Size	1000×660mm
Machine Dimension	2500×1800×3040mm

Descriptions:

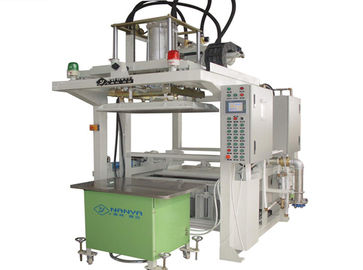

This is an automatic turnover –single type forming machine
Paper pulp molding machine for industrial packaging takes paper pulp as raw material, and absorbs the pulp into the mould under the help of vacuum. After a while, the machine make products reach the specific thickness and dry wet ratio. After the processes of shifting mould and demoulding, the products are formed completely.
Auto discharge machine transfers the formed and dehydrated products from forming machine to material receiving platform by the cylinder driving power. In this way, it needs less labor intensity, improves the productivity and enhances the handling safety.
We adopt the PLC control and touch screen in the machine, which make the machine operated safely, stably and easily.
Turnover forming absorbs pulp and makes the products either side smooth. With the hydraumatic position system, the machine performs accurately and stably, the qualified tare is very ideal.

Production Information and Our Warranty:

Status: Brand new
Product Type: Automatic turnover –single type forming machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: NANYA
Model Type: CY201
Voltage: 220-440V
Approval: CE, TUV,SGS, ISO9001
Warranty: 12 Months
After-Sale Service: Engineers available to service machinery overseas

Competitive Advantages:

Fully automatic
Energy saving and labor utilization
Overseas technical support available
Proprietary technology
TUV Supplier Assessment Certificate
SGS Supplier Assessment Certificate
CE Certificate
Nanya - Chinese famous trademark
Over 20 years experience in this field, Chinese reliable supplier, supported by the government and university.
The standing director of Chinese packaging association

Applications:

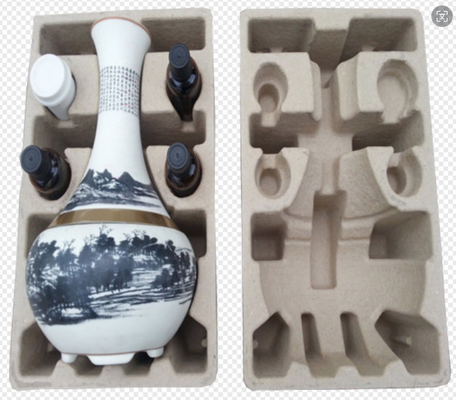

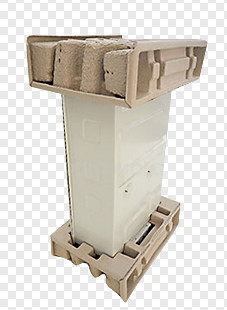

High Quality Packages & Shockproof Packaging	Mobile Phone Package, Camera Package, Electrical Equipment, Electronic Products, Electronic Tools, Communication Apparatus, Lamp and Lanterns
Cup salver	2, 4 cup salver
Artware	Mask, Christmas Balls, Easter Eggs , Boutiques…
Agricultural products	Fruit tray, seeding cup
Disposable Medical Care Products	Bedpan, Sick Pad, Female Urinal…

Business Terms

NO.	ITEM	DESCRIPTION
1	Payment Terms	30% down payment by T/T, 70% before shipment by T/T or L/C at sight
2	Delivery Terms	FOB Guangzhou, China. (Final transaction could be made in C&F or CIF, the freight and insurance should be decided according to the current rate when signing the contract).
3	Delivery Time	30-60 days
4	Packages	Packages suitable for ocean transport. The small parts are packaged by wooden boxes. The big parts are protected by wooden support.
5	Installation	Seller should appoint 2 engineers to instruct buyer for installation, test-run and training. All the charges including air ticket, VISA , accommodation and food of the engineers should be responsible by buyer. Besides, the buyer should pay the engineers subsidy of USD50/person/day and offer translation service.
6	Warranty	12 months after installation
7	After service	The seller will send spare parts for one year use by free. The seller will provide operating manual, drawing, process diagram for all of the equipments. The seller will instruct the operation, maintain method for the buyer’s worker after installation. The seller will instruct the production technology and prescription for the buyer’s engineer after installation;
8	Quotation Validity	90 days after the offering date
