Quality Product Is Our Passion; Service&Innnovation Is Our Mission.
 |
| Place of Origin: | Guangzhou, China(mainland) |
| Brand Name: | NANYA |
| Certification: | CE |
| Model Number: | BY010 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | contact us and get the latest price |
| Packaging Details: | International Standard Shipping Package |
| Delivery Time: | Normally 45 days |
| Payment Terms: | T/T, L/C, Cash or western Union |
| Supply Ability: | 1000sets/year |
| Product Name: | Pulp Tray Machine | Capacity: | 100~150 Kgs/h |
|---|---|---|---|
| Forming Type: | Reciprocating Vacuum | Application: | Electronic Protective Package |
| Feature: | With 2 Working Stations | Raw Material: | Recycle Paper/waste Carton/newspaper |
| Product Height: | <=150mm | Warranty: | 12 Months |
| Control By: | PLC + Touchscreen | Production Capacity: | Depend On Products |
| High Light: | 150 kgs/h Pulp Tray Machine,Touch screen Pulp Tray Machine,Electronic Protective Package Equipment |
||
Recycle Paper Electronic Protective Package Equipment Pulp Tray Machine
Pulp Tray Machine Introduction
1. The machine is for making recyclable pulp molding electronic Package items.
2. The products will drop on the collection table automatically.
3. This machine has two working stations, it can make two different types products at the same time. By changing moulds, the machine can make many types different products.
4. The pulp tank is made from SUS304 stainless steel, which is corrosion resistance.
5. PLC and touch screen controlled.
6. Multiple sets of forming machines can be matched in the production line to meet different capacity.
Flow Chart Processes
| Pulping System | The pulp is mixing with raw material and water. When adjusting the pulp consistency, the pulp will go to the forming machine. |
| Forming System | With the help of vacuum and compressed air, the products will be formed on the moulds. After forming, the up mould will move forward and drop on the collection table automatically. |
| Drying System |
Natural drying or drying tunnel or single layer dryer as optional. |
| Hot press system | After dried, the products will be hot pressed to get a better shape and smoother surface. |
Main Technical Data
| Forming Machine Type | BY010 pulp tray machine(can put multiple sets on the production line) |
| Brand | NANYA |
| Raw Material | Recycle paper/waste carton/newspaper |
| Forming Method | Reciprocating Vacuum |
| Structure | Double working stations, can make two different products at the same time |
| Mould Plate Size | 800*600*2mm |
| Product Height | <=150mm |
| Application | Electronic protective package / paper trays / cup carrier / egg tray / fruit tray |

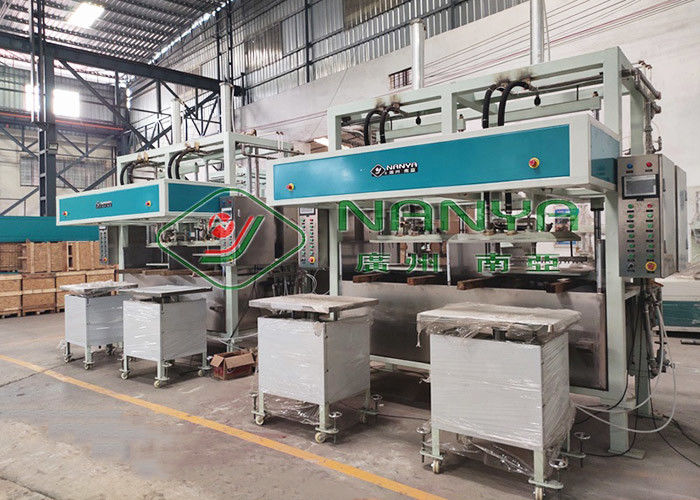

Paper Pulp Moulding Machine Picture
More Plate Dimension Choices
| CY010 | Reciprocating -double cylinder with 800*600*2mm |
| CY020 | Reciprocating -double cylinder with 700*500*2mm |
| CY030 | Reciprocating -Single cylinder with 1000*660mm |
| CY040 | Reciprocating -Single cylinder with 1200*800mm |
| CY050 | Reciprocating -Single cylinder with 1600*800mm |
| CY060 | Reciprocating -Single cylinder with 2000*800mm |
| CY070 | Reciprocating -Single cylinder with 2400*800mm |
| CY080 | Reciprocating -Single cylinder with 1500*1300mm |
YOUTUBE Video Link
https://www.youtube.com/watch?v=z9VKmZWBr5o
For more video, you can search our company name "Guangzhou NANYA Pulp Molding Equipment Company" on YOUTUBE and subscribe us.
Product Show
1. Electronic protective package, like for TV, cooker, battery, air conditioner, car parts and other electrical items.
2. Egg tray/egg box/fruit tray/ 2 cup carrier/ 4 cup carrier / seeding cup
3. Disposable Medical Care Products, like kidney, bedpan, sick pad, urinal pan…

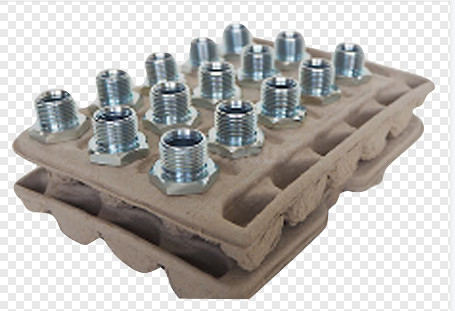

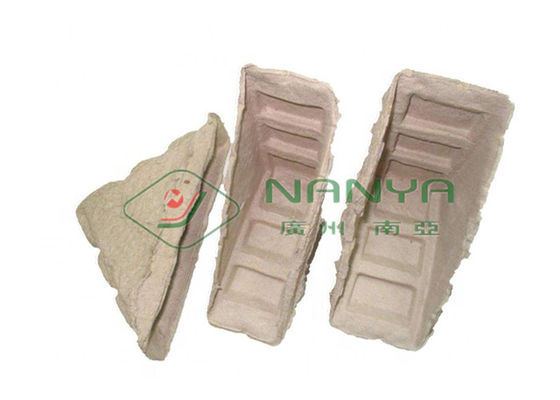

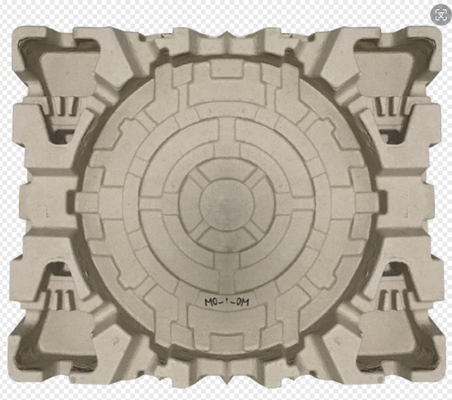

The below is some products made by this machine, by changing moulds, the machine can make different products.
Competitive Advantages
1. Reliable Machinery Quality: Control every process very strictly; adopt mature technology and SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.
2. Rich Experience: Established in 1994, 24 years’ experiences in pulp molding machine manufacturing.
3. Professional Team: trained professionals available for global installation & guidance.
4. Creative Solutions: customize best configurations as per your requirements.
