Quality Product Is Our Passion; Service&Innnovation Is Our Mission.
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | NANYA |
| Certification: | CE |
| Model Number: | TS-10B |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Strong and Suitable for Marine Shipment |
| Delivery Time: | 75days |
| Payment Terms: | T/T, L/C, Cash or western Union |
| Supply Ability: | 50 sets per month |
| Product Name: | Tableware Making Machine | Automation: | Semi Auto Or Match Robot |
|---|---|---|---|
| Heating Way: | Electricity Or Thermo-oil | Control System: | PLC + Touch Screen |
| Raw Material: | Bamboo Pulp Or Other Virgin Pulp | Dimension(L*W*H): | Depend On The Final Production Line |
| Production: | Pulp Plate, Tableware, Pulp Bowl, Pulp Box... | Platen Size: | 1100*800mm & 900*600mm |
| Max Pressure: | 40 Ton, Pneumohydraulic Drive | Drying Way: | Drying In Mould |
| High Light: | 8 Ton/Day Tableware Making Machine,1000m2 Tableware Making Machine |
||
8 Ton/Day Bamboo Pulp Paper Plate Tableware Making Machine
Paper Plate Making Machine Specifications:
| Mold Platen Size | 1100*800mm or 900*600mm |
|
Capacity |
6~8 ton/day |
| Automation | Semiautomatic (Could be improved to fully automatic by match additional robot) |
|
Workshop Required |
≥1000 m2 |
|
Electricity Consumption |
220 kw |
|
Electricity Installed |
380 kw |
| If Heat by Conduction Oil | Natural Gas: 60~90m³/h |
| Raw Material | bagasse pulp/bamboo pulp/straw pulp/wood pulp |
|
Material Consumption |
250~ 350 kg/h |
|
Water Consumption |
600 ~ 800 kg/h |
|
Worker Requirement |
22 persons(if match robot, can save half labors) |
|
Container Requirement for Shipment |
5 x 40’ HQ |
Paper Plate Making Machine Descriptions:
1. This is a Semi Automatic Pulp Molding Tableware Production Line, around 6~8 ton per day capacity.
2. This line could be improved to fully automatic by match additional robots.
3. The production line is constituted by a hydrapulper system, a semi automatic thermoforming machine(forming/drying/pressing integrative machine), and auxiliary equipments.
4. The capacity can be matched depending on customer's requirement. Multiple sets of forming machines can be matched in the production line.
Working Processes:
Pulping System: |
Including: pupler, grinder, pulp tank, water tank, pulp pump, water pump, agitator, consistency and control cabinet. |
| Forming And Hot-Pressing System (with the function of forming, drying, hot pressing and stacking): | The ready pulp is vacuumized into products on forming mold, then products are transferred to hot pressing mold, after drying and hot pressing processes; the products can be transferred and stacked by workers or by robot arms. |
| Vacuum System: | Supply vacuum for forming machine. |
| Air Compressor System: | Supply compressed air for forming machine. |
| Cementing Machine & Laminating Machine: |
Some products need coating, labeling, punching or printing, NANYA can provide the corresponding machines. |
| Cutting System(Edge Trimming Machine): | Cutting the extra edges of products, to get more compact and neat edge. |
| Disinfect System: | UV or microwave disfect, then go to package |
YOUTUBE Links:
| Semi Automatic Tableware Production Line | https://www.youtube.com/watch?v=lncxbPAnGd4 |
| For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE and subscribe us. | |

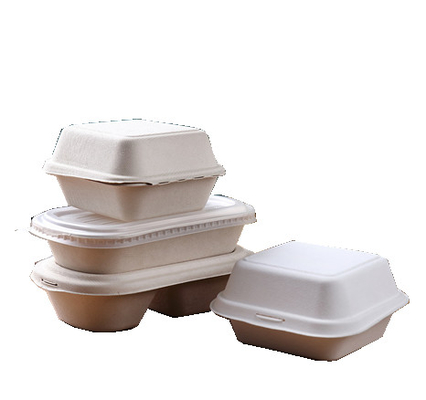

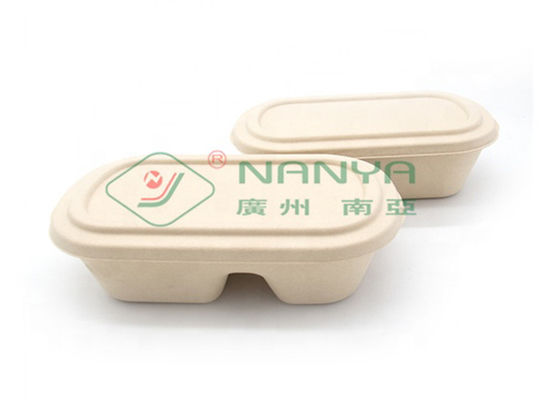

Finished Products:
The below are product made by our machine, by changing moulds, the machine can make different products.
Why Choose NANYA:
- Established in 1994, pioneer and leader in pulp molding industry
- Professional in all kind of pulp molding machine, having over 100 model machines for choice
- Offer whole line of machine, also design service
- Offer Installation service/ Training service
- Considerate after sales service, reply in 24 hours
