Automatic Rotary Egg Tray / Egg Carton Making Machine High Output Pulp Molded

Automatic Rotary Egg Tray / Egg Carton Making Machine High Output Pulp Molded

    • Automatic Rotary Egg Tray / Egg Carton Making Machine High Output Pulp Molded
    • Automatic Rotary Egg Tray / Egg Carton Making Machine High Output Pulp Molded
    • Automatic Rotary Egg Tray / Egg Carton Making Machine High Output Pulp Molded
    • Automatic Rotary Egg Tray / Egg Carton Making Machine High Output Pulp Molded
  • Automatic Rotary Egg Tray / Egg Carton Making Machine High Output Pulp Molded

    Product Details:

    Place of Origin: Guangzhou, China(Mainland)
    Brand Name: NANYA
    Certification: CE
    Model Number: ER4000-B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export Standard Packing
    Delivery Time: 100 Days
    Payment Terms: T/T, L/C, Cash or western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: Egg Tray Making Machine Capacity: 4000Pcs / H
    Raw Material: Waste Paper / Waste Carton / Newspaper Forming Type: Vacuum Suction
    After Service: Engineer Overseas Available Application: Egg Tray, Egg Crate, Fruit Tray, Paper Tray
    Warranty: 12months Color: Green(can Be Customized)

    High Output Pulp Molded Automatic Rotary Egg Tray / Egg Carton Making Machine




    Descriptions:


    1. This is a automatic rotary egg tray making machine, with 4000pcs/h.

    2. Take recycled paper, such as newspaper, used cartons, waste paper, office paper as raw materials.

    3. Main processes: pulping, forming, reciprocated drying and stacking etc.

    4. By changing moulds, this machine can make egg trays, fruit trays, egg boxes, cup carriers and disposable medical care products and etc.

    5. For rotary machine, we also have 3000pcs/h, 5000pcs/h, 6000pcs/h. 8000pcs/h and 10000pcs/h.





    Main Technical Data:


     Product Name   Automatic Egg Tray Making Machine
     Model Type  ER4000-B
     Output  4000pcs/h (base on 30-packed egg tray, size 300x300mm, weight 65g~70g)
     Workshop Required  ≥600 m2 (for reference only, can adjust according to actual size of client’s plant.
     Electricity Consumption  ~160 kw/h
     Electricity Installed  250 kw
     Material Consumption  250~280 kg/h
     Water Consumption  1.0~1.5 ton/h
     Operator Required  4~5 persons/shift
     Container Required  7 x 40 HQ
     Forming Machine   Rotary type with 8 plates. Each for 4 pcs/time
     Metal Dryer Size  22x1.6x4m  6-Layers
     Fuel for Dryer  LPG / Natural gas / Diesel / Steam / Wood / Coal and etc.





    Production Consumption:


    Model Natural gas LPG Diesel
    ER4000-B 70~80m3/h 25~29m3/h 62~70kg/h
    Notes:  can choose one one fuel from three fuel type

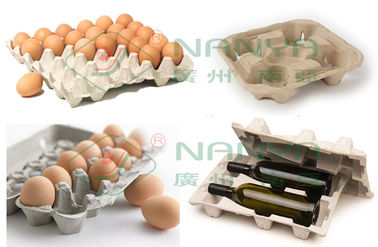

    Applications:

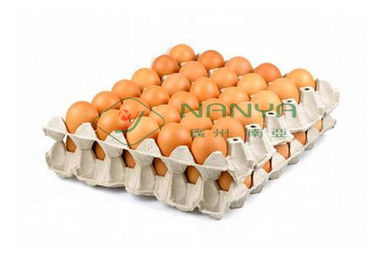

     1  15, 20,30,40packed egg tray… quail egg tray
     2  6, 10,12,15,18,24 packed egg carton…
     3  Fruit tray, seeding cup and other agricultural products
     4  2 or 4 packed cup holder
     5  Disposable Medical Care Products like bedpan, sick pad, female urinal…
     6   Industrial inner package items.

    By changing moulds, the machine can make different type of products.

    Automatic Rotary Egg Tray / Egg Carton Making Machine High Output Pulp Molded





    YOUTUBE Video Links:


     4000pcs/h with 6 layers dryer  https://www.youtube.com/watch?v=85eeIP8xCEY&t=3s
     6000pcs/h with 6 layers dryer  https://www.youtube.com/watch?v=YIeLPQnwO4M
     3000pcs/h with single layer dryer  https://www.youtube.com/watch?v=CX9NgjBZ0Nk
     4000pcs/h with single layer dryer  https://www.youtube.com/watch?v=JCu3xNpnCsM
     6000pcs/h with single layer dryer  https://www.youtube.com/watch?v=9XpyL-ggwi4

     For more videos, you can search "Guangzhou Nanya Pulp Molding Equipment Company" on YOUTUBE  and subscribe us.





    How the Production Line Works:


    1. Pulping System: Turn waste paper, such waste carton, used newspaper, into pulp of certain consistency. Main equipment: hydrapulper, pulp tanks, water tank, pulp pump, water pump, agitator, etc.

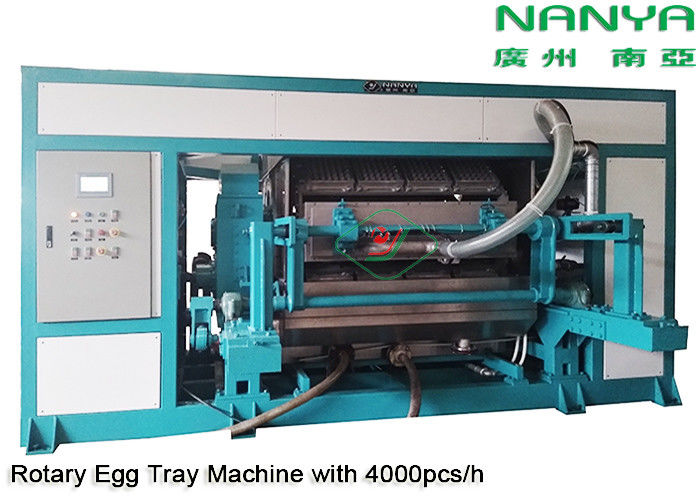

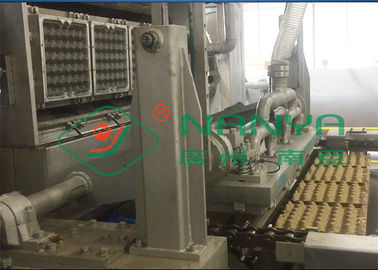

    2. Forming Syatem: When adjusting the pulp consistency, the pulp will go to the forming machine. With the help of vacuum and compressed air, the products will be formed on the moulds.

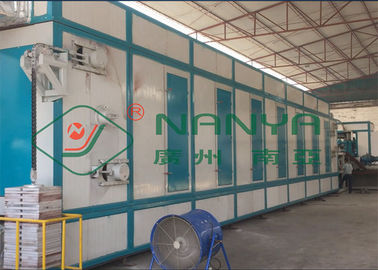

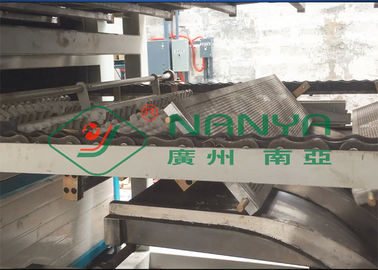

    3. Drying System: After forming, the tranfer moulds will move forward and put on the dryer automatically. you can choose Natural gas / LPG / Diesel / Heavy oil / Steam / Wood / Coal to heat up the wet products.



    4. Vacuum System: Supply vacuum for forming machine.



    5. Air Compressor System: Supply compressed air for forming machine.



    6. Stacking & Packing System: Cutting the extra edges of products, to get more compact and neat edge.





    Why Choose NANYA:


    Reliable Machinery Quality: Control every process very strictly; adopt mature technology and SIEMENS electrical control parts, FESTO & SMC pneumatic control parts.

    Rich Experience: Established in 1994, 24 years’ experiences in pulp molding machine manufacturing.

    Professional Team: trained professionals available for global installation & guidance.

    Creative Solutions: customize best configurations as per your requirements.





    Main Business Terms:


     Payment Terms  30% down payment before production; 70% balance payment before delivery.
     Delivery Terms  FOB Guangzhou, China. (CNF and CIF also available.)
     Delivery Time  120 days
     Package  Export Standard Packing
     Warranty  12 months
     Installation  Overseas engineering service is available
     Quotation Validity  90 days after the offering date
     Aftersales Service

     We will send some spare parts by free.

    And we will provide  operating manual, drawing, process diagram.

    We will instruct  the operation, maintain method for the buyer’s worker after installation.

    Video conference guidance is avaiable.
